Looping ADSR with integral VCA


This is a very popular dual purpose module. Not only does it feature a looping four stage envelope generator, but it also has a high quality VCA onboard.

Two outputs are provided, one, labelled ADSR, is the raw output of the core ADSR generator. The other, VCA OUT, is the output of the integral VCA. This highly useful circuit implementation hardwires the ADSR generator to the control input of the VCA. The signal at the VCA's signal input, the VCA IN socket, will then be multiplied by the ADSR waveform. You can use any signal into this input, audio or CV. If you use CV, then the ADSR output level will be governed by the level of the CV. If you use audio, then the ADSR waveform will control the volume of that audio signal.

A typical use would have the IN socket being driven by the velocity CV from a midi-CV convertor. Thus the harder you hit the keys, the greater the ADSR output level. If you use this to control a filter sweep, this can create brilliantly effective touch sensitivity to your patch.

The circuit is configured so that if nothing is plugged into the IN socket, the VCA OUT will behave the same as the raw ADSR output.

The ADSR is operated by a gate signal, but can also be triggered by slow rising CVs too due to the built in schmitt trigger function. No additional 'trig' input is required.

The ADSR/VCA module is built on one PCB called the VC-ADSR board. Although the 1U panel design does not imply a voltage controlled design, the internal electronics are all voltage controllable. This allows blisteringly fast minimum attack and decay times. And yet, the controls with their true exponential response, allow you to adjust the times with ease.

Also on this module is an LED. This gives a visual indication of the output level of the internal ADSR waveform.

The latest version of the module accommodates either our standard Oakley/MOTM power header or a Synthesizers.com power header. For DIY builders of this module it is possible to purchase the Sock4 circuit board which is available separately. This little board speeds up the wiring of the four 1/4" sockets and reduces the chances of any wiring errors.

Loop Modes

From issue 3 the Oakley ADSR/VCA now incorporates a looping mode. Looping means that the output will rise to the attack peak at the speed determined by the attack pot and then fall to 0.6V at the speed determined by the Decay pot. It will then rise again to attack peak and then fall back to 0.6V and so on.

NORM - the module behaves as a standard ADSR.

GATED - the output will loop only when gate is high. As soon as gate arrives the output will rise up at the attack speed and then decay at the decay time and repeat. If the gate is removed at any point the output will then fall at the release time.

LOOP - The module's output it will loop continuously in AD mode. The Gate input has no effect in Loop mode.

In both looping modes the position of the sustain pot can be used to turn the looping on or off. At values above 10% the looping will stop. This is very useful in the 2U version of the module where the looping can be controlled by an external CV.

Upgradable Design

This module can be upgraded to full voltage control with an addition of an extra module that uses the 'ADSR Upgrade' PCB. This board takes up a single width of panel space, and is fitted next to the ADSR/VCA module to be controlled. The upgrade can be added on at any time and installation is very simple. Two small interconnects behind the front panels allow the two boards to 'talk' to each other. See the VC-ADSR page for more details of the upgrade and the 2U VC-ADSR/VCA module.

Specifications:

Attack times: 0.75 milliseconds to 12 seconds (fast) or 3.75mS to 60 seconds (slow). Charging voltage +15V, internal attack peak +8.2V. Pseudo linear ramp.

Decay/Release times: 1.8mS to 15s (fast) or 9mS to 75 seconds (slow). Time measured from 90% of sustain value to 10% of sustain value. Exponential decay slope.

Sustain levels: 0 to 100%

The attack peak and maximum sustain level is 5V from the ADSR socket.

With no jack plug inserted into the IN socket, the attack peak and maximum sustain level is 5V from the VCA OUT socket.

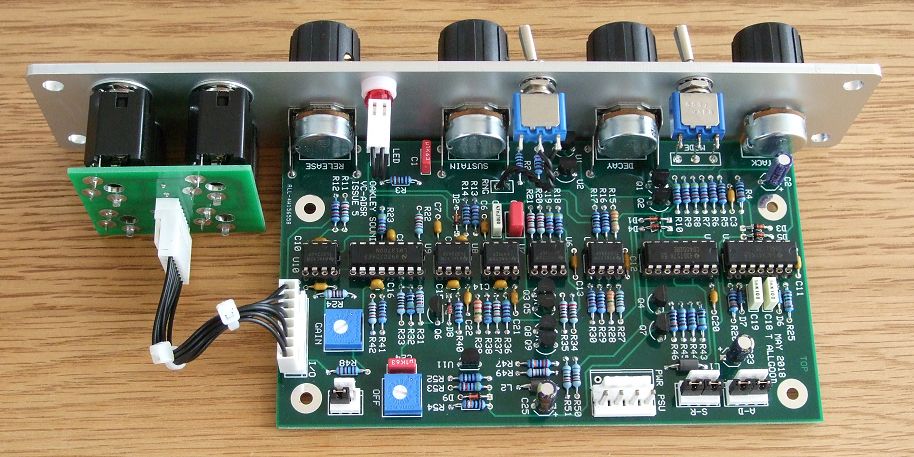

The issue 4 VC-ADSR PCB behind a natural finish Scheaffer panel and fitted with optional Sock4 board. Note also the two four way headers that can be attached to the optional 'ADSR Upgrade' module to allow for full voltage control over A, D, S and R parameters.


Prices

Click here for ordering details.

VC-ADSR issue 4 PCB ................................. 20GBP

Sock 4 issue 1 PCB ......................................... 5GBP
ADSR pot bracket kit .................................. 0.75GBP

THAT2180LC .............................................. 5.50GBP

The optional Pot Bracket Kit contains the three 16mm Alpha pot brackets required to complete one module.

All other parts can be purchased from your usual electronic component supplier.

All prices include VAT at UK rates. Shipping is additional to these prices. See also the FAQ page.

ADSR ready made modules in Dotcom and MOTM format are available from Krisp1.com.


Project Downloads

Issue 3 and 4 User Manual

Issue 3 and 4 Builder's Guide

Construction Guide Our handy guide to building Oakley DIY projects

Parts Guide Our handy guide to buying parts for Oakley DIY projects

Links to schematics are available to purchasers of the PCB or module and will be sent via e-mail when the board(s) are shipped.

Front Panel database

A Schaeffer front panel can be made for this module. The databases can be found by downloading the following links:

5U format in traditional black

5U format in natural silver

To read, edit and print these files you will need a copy of 'Frontplatten Designer' from Schaeffer. Panels can be ordered via the program using its secure online ordering system.

Schaeffer are based in Berlin, Germany and can send panels to anywhere in the world. Delivery to the UK normally takes around ten days. For North American users you can also order your Schaeffer panels from Front Panel Express.

Two older issue 2 ADSR modules side by side in a 10U high 19" racked Oakley modular. The issue 4 modules have a similar layout but add an extra switch for the looping mode.
